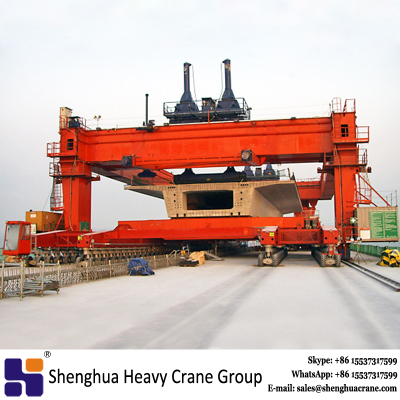

High quality expert design box type launching gantry 1600t

High quality expert design box type launching gantry 1600t was developed and designed by our Design Department for high speed railway bridges construction (250 km/hour and 350 km/hour).

The feature of transporting bridge girder beam launching gantry:

1. light weight

2. good stability

3. precise self positioning

4. precise beam positioning

5. easy operating

High quality expert design box type launching gantry 1600t comes with Centralize control system, Multi speed Crane, Hydraulic powered Support, Mechanical powered Self Advancing system and spare-parts.

Our High quality expert design box type launching gantry 1600t lifts, transport and position the Full Span Bridge in few simple steps. Shenghua supply the complete range of equipment typically needed in below construction process: Special formwork with inner mound(hydraulically maneuvered), Lifting cranes for pre-cast yard, Lifting cranes for pre-cast bridge span, Multi-axle tyre trolly, FSM launcher.

1.  Every product will be tested before shipment.
Welcome to visit our factory and check goods before delivery, we'll help apply for invitation letter and visa.

2. Installation

Professional technical staffs provide installation, commissioning and training services. The installation team can be sent to local site to install for customer.

3. Warranty

14 months warranty after products leaving the factory or 12 months warranty after installation and commissioning in addition to the human damage factors.

4.  Delivery

Delivery with English user manual, parts manual, product certification and other relevant certificates.

5. Technical Service

Design and drawing suitable solutions and possibilities.

Provide online consultant service.

Henan Shenghua Heavy Crane Group

is a big enterprise specialized in researching, developing, producing and exporting.

It mainly produces High quality expert design box type launching gantry 1600t and all kinds of accessories, which widely cover machinery, metallurgy, electric power, railway, water conservancy, ports, terminals and other industries.

Shenghua Heavy Crane Group have more than 600 stuff, and covers 200,000 square meters.
Our advantages:
1. More than 50 R&D personnels with advanced Science and technology
2. More than 400 sets advanced Production processing equipment and inspection equipment
3. Independent intellectual property rights to develop energy saving bridge cranes, gantry cranes, and electric hoist
4. Obtain ISO 9001 certificate and more than 10 series of patent certificates
5. Efficient service and competitive products
6. Export more than 100 countries

 FAQ

1.What’s the information should I provide when inquiry about the High quality expert design box type launching gantry 1600t?

1.1 we need the Bridge Drawing; the Maximum longitudinal slope and the Maximum Transverse slope;

1.2 The Girder/beam drawing.

2. What are inspection standard for load test of  High quality expert design box type launching gantry 1600t?

2.1.Dynamic load test

2.2 times rated load, main girder does not down deflection, all mechanisms work well, performance parameters meet the design demand, all limit switches and safety protection interlock devices are reliable, all spare parts does not have cracking and flexible connection, all motors and contactors are not overheat.
2.3Static load test
2.4times rated load, all mechanisms work well, the crane stops 20-30min as trial load is lifted 10cm high, then measure main girder down deflection(theodolite, ruler). Put down trial load to measure main girder upper camber, repeat 3 times, steel structure does not have permanent deformation.
3.How to make highway bridge concrete girders?
Highway Bridge concrete girders could be made by 4 methods:
3.1.Full span prefabrication
3.2 Segment girder prefabricationull span prefabrication,
3.3 Full span cast-in-place girder
3.4 Segment cast-in-situ
4.How about maintenance of High quality expert design box type launching gantry 1600t?

4.1. Lubricating: Working performance and service life of all mechanisms of crane depend on lubricating to a big extent.
4.2 Steel wire rope: Fracture of wire has to be specially noticed. A new steel wire rope has to be changed immediately with the condition of broken wire, broken strands and wear loss to scrapping standard.
4.3 Spreader: The spreader has to be checked regularly
4.4 Pulley block: Mainly check rope race wearing condition, check whether wheel flange is cracked and whether pulley could get stuck in the axle or not
4.5 Wheels: Regularly check wheel flange and tread, a new wheel has to be immediately replaced as crack part or wearing in wheel flange reaches 10% of wheel thickness; Re-polishing has to be done as diameters between two driving wheels on tread differs more than D/600, or there are severe scar on the tread
4.6 Brake: Check one time per shift; The brake should be in accurate movement, and pins do not allow to be stuck. Brake shoes shall fit brake wheels correctly; the brake shoes interval shall be equal to open them.
