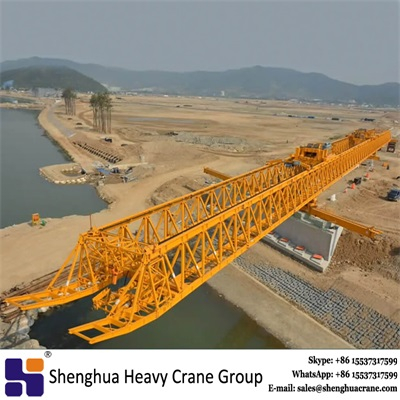

China HSHCL 160ton beam launcher equipment used in bridge construction is used in the erection of precast beam bridges for span by span method of construction for precast beam girders like T beam, U beam, etc. This self-beam launcher is suitable for bridge construction over river, valley or highway and so on.

China HSHCL 160ton beam launcher equipment used in bridge construction is suitable for the construction of bridge for roads, railways and other bridge erection construction site. Its main function is to lift the prefabricated beams, then transported onto the prefabricated pier. It has big difference from the general cranes. It requests high security.

Our company

Henan Shenghua Heavy Crane Group is a big enterprise specialized in researching, developing, producing and exporting.

It mainly produces China HSHCL 160ton beam launcher equipment used in bridge construction and all kinds of accessories, which widely cover machinery, metallurgy, electric power, railway, water conservancy, ports, terminals and other industries.

Shenghua Heavy Crane Group have more than 600 stuff, and covers 200,000 square meters.

Our advantages:
A. More than 50 R&D personnels with advanced Science and technology.
B. More than 400 sets advanced Production processing equipment and inspection equipment.
C. Independent intellectual property rights to develop energy saving bridge cranes, cranes, and electric hoist.
D. Obtain ISO 9001 certificate and more than 10 series of patent certificates.
E. Efficient service and competitive products.
F. Export more than 100 countries.

Packing & Delivery

Packing
1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying;
2. Main beams, end beams and electric hoist are packed by plastic woven cloth. It can reduce abrasion when transport.

Delivery
1. If the size of China HSHCL 160ton beam launcher equipment used in bridge construction are suitable for container ship, usually by container;
2. If the size is too big, usually by bulk ship or by container after truncation; Transport ways are based on reducing cost for you and keep the crane performance.

Delivery time
Within 30 to 40 working days after the receipt of deposit.

Transportation
Generally 35 days to 50 days to destination port.

Our service

1.Test before shipment

1. Every China HSHCL 160ton beam launcher equipment used in bridge construction will be tested before shipment.

2. Welcome every customer visit our factory and check China HSHCL 160ton beam launcher equipment used in bridge construction before delivery, we'll help apply for invitation letter and visa.

2 Installation

Professional technical staffs provide installation, commissioning and training services. The installation team can be sent to local site to install for customer.

3 Warranty

18 months warranty after the factory delivery.

4  Delivery

Delivery with English user manual, parts manual, product certification and other relevant certificates.

5 Technical Support

Design and draw suitable solutions and possibilities.

Provide online consultant service.

FAQ

1.What’s the information should I provide when inquiry about the beam launcher?
1.1 We need the Bridge Drawing;the Maximum longitudinal slope and the Maximum Transverse slope;
1.2 The Girder/beam drawing;

2.What are inspection standard for load test of China HSHCL 160ton beam launcher equipment used in bridge construction?
2.1 Dynamic load test
1.1 times rated load, main girder does not down deflection, all mechanisms work well, performance parameters meet the design demand, all limit switches and safety protection interlock devices are reliable, all spare parts does not have cracking and flexible connection, all motors and contactors are not overheat.
2.2. Static load test
1.25 times rated load, all mechanisms work well, the crane stops 20-30 min as trial load is lifted 10 cm high, then measure main girder down deflection(theodolite, ruler). Put down trial load to measure main girder upper camber, repeat 3 times, steel structure does not have permanent deformation;

3.How to make highway bridge concrete girders?
a. Full span prefabrication.
b. Segment girder prefabrication.
c. Full span cast-in-place girder.
d. Segment cast-in-situ.

4.How about maintenance of China HSHCL 160ton beam launcher equipment used in bridge construction?
4.1. Lubricating: Working performance and service life of all mechanisms of crane depend on lubricating to a big extent.

4.2. Steel wire rope: Fracture of wire has to be specially noticed. A new steel wire rope has to be changed immediately with the condition of broken wire, broken strands and wear loss to scrapping standard.
4.3. Spreader: The spreader has to be checked regularly.
4.4. Pulley block: Mainly check rope race wearing condition, check whether wheel flange is cracked and whether pulley could get stuck in the axle or not.
4.5. Wheels: Regularly check wheel flange and tread, a new wheel has to be immediately replaced as crack part or wearing in wheel flange reaches 10% of wheel thickness; Re-polishing has to be done as diameters between two driving wheels on tread differs more than D/600, or there are severe scar on the tread.
4.6. Brake: Check one time per shift; The brake should be in accurate movement, and pins do not allow to be stuck. Brake shoes shall fit brake wheels correctly; the brake shoes interval shall be equal to open them.

5.How many Personnel and equipment to assemble beam launcher in the worksite we need?
Personnel: 8 to 10 workers equipment
Truck crane > 50 t : 2 sets
Φ19.5 steel wire rope 8 m: 4 ropes
Sleepers: several
Electric welding machine: 1 set
Oxygen, acetylene: 1 set
Hammer(12 pound and 8 pound): 1 set for each
Wrench and pincher: several
Gradienter: 1 set
