Box type bridge girder crane overhead launching gantry machine

Box type bridge girder crane overhead launching gantry machine

  • FOB Price:US $300,000 -800,000 / Set (Only for reference) | Get Latest Price
  • Min.Order Quantity: 1 Set
  • Supply Ability: 50 Sets per Month
  • Port: Qingdao, Tianjin, or Shanghai Port, China
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets

Chat Now!
Verified Supplier Shenghau Heavy Crane Group
| Factory
Experience:2006-05-15
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  China
  • Brand Name:  Shenghua Heavy Crane Group
  • Model Number:  LG

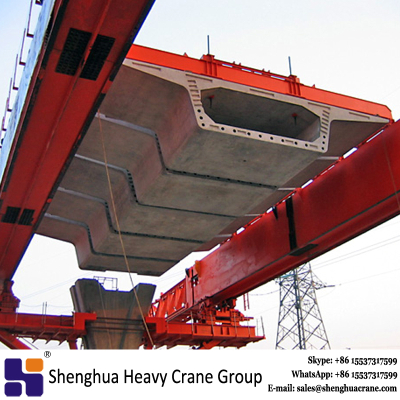

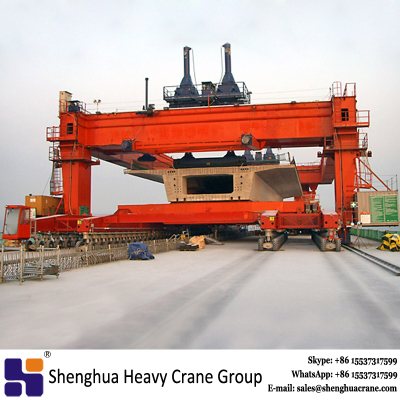

  Our Box type bridge girder crane overhead launching gantry machine lifts, transport and position the Full Span Bridge in few simple steps. Shenghua’s scope of delivery of FSM equipment covers the design and supply of the complete range of equipment typically needed in such constructions: Special formwork with inner mound(hydraulically maneuvered),Lifting cranes for pre-cast yard, Lifting cranes for pre-cast bridge span, Multi-axle tyre trolly, FSM launcher.


 1. What’s the information should I provide when inquiry about the Box type bridge girder crane overhead launching gantry machine?

1.1 We need the Bridge Drawing, the Maximum longitudinal slope and the Maximum Transverse slope.
1.2 The Girder/beam drawing.


2. What are inspection standard for load test of Box type bridge girder crane overhead launching gantry machine?
Dynamic load test
1.1 times rated load, main girder does not down deflection, all mechanisms work well, performance parameters meet the design demand, all limit switches and safety protection interlock devices are reliable, all spare parts does not have cracking and flexible connection, all motors and contactors are not overheat.
Static load test
1.25 times rated load, all mechanisms work well, the crane stops 20-30 min as trial load is lifted 10 cm high, then measure main girder down deflection(theodolite, ruler). Put down trial load to measure main girder upper camber, repeat 3 times, steel structure does not have permanent deformation.


3. How to make highway bridge concrete girders?
Highway Bridge concrete girders could be made by 4 methods:
3.1 Full span prefabrication.
3.2 Segment girder prefabrication.
3.3 Full span cast-in-place girder.
3.4 Segment cast-in-situ.


4. How about maintenance of Box type bridge girder crane overhead launching gantry machine?
4.1 Lubricating: Working performance and service life of all mechanisms of crane depend on lubricating to a big extent.
4.2 Steel wire rope: Fracture of wire has to be specially noticed. A new steel wire rope has to be changed immediately with the condition of broken wire, broken strands and wear loss to scrapping standard.
4.3 Spreader: The spreader has to be checked regularly
4.4 Pulley block: Mainly check rope race wearing condition, check whether wheel flange is cracked and whether pulley could get stuck in the axle or not
4.5 Wheels: Regularly check wheel flange and tread, a new wheel has to be immediately replaced as crack part or wearing in wheel flange reaches 10% of wheel thickness; Re-polishing has to be done as diameters between two driving wheels on tread differs more than D/600, or there are severe scar on the tread
4.6 Brake: Check one time per shift; The brake should be in accurate movement, and pins do not allow to be stuck. Brake shoes shall fit brake wheels correctly; the brake shoes interval shall be equal to open them.


Henan Shenghua Heavy Crane Group is a big enterprise specialized in researching, developing, producing and exporting.

It mainly produces Box type bridge girder crane overhead launching gantry machine, overhead crane and gantry crane, beam launcher, movable scaffolding system crane, form traveller, straddle carrier, tyre transporter, beam trolley, portal crane and electric winch, electric hoist and all kinds of accessories, which widely cover machinery, metallurgy, electric power, railway, water conservancy, ports, terminals and other industries.

Shenghua Heavy Crane Group have more than 600 staff, and covers 200,000 square meters.


Our advantages:
1. More than 50 R&D personnel with advanced Science and technology.
2. More than 400 sets advanced Production processing equipment and inspection equipment.
3. Independent intellectual property rights to develop energy saving bridge cranes, gantry cranes, and electric hoist.
4. Obtain ISO 9001 certificate and more than 10 series of patent certificates.
5. Efficient service and competitive products.
6. Export more than 100 countries.





  • Place of Origin:  China
  • Brand Name:  Shenghua Heavy Crane Group
  • Model Number:  LG


Model

JQJ450

JQJ900

Lifting capacity

450T

900T

Suitable beam

20-32M span,
pre-stressed T type bridge girder

20-32M span,
pre-stressed T type bridge girder

Suitable long slope

≤2%

≤2%

Suitable curve radius

≥600m

≥100m

Lifting height

5.6m

7.2m

Work efficiency

6pcs/day

4pcs/day

Max Wind pressue at work

Level 6

Level 6

Max Wind pressue at non-work

Level 11

Level 11

Lifting speed

0-0.5m/min

0-0.5m/min

Traveling speed

0-1m/min

0-0.5m/min

Crane weight

343t

525t

Overall size

69*8.9*9m

59.3*17.1*12.1m

Installed Power

176kw

300kw

Power source

diesel generator

diesel generator

Note:1, All the values in this table are just a reference for you.
        2, We do customized design according to customer request.
